Arrma Infraction 6S BLX – Blue

The ready-to-run INFRACTION™ 6S BLX 4WD 1/7 scale truck tops off a tough and powerful ARRMA® brushless platform with stunning style — ideal for intermediate-level drivers who are eager to experience street bashing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). Its Spektrum® DX3™ radio and Smart brushless power system components provide real-time telemetry that also helps you reach and maintain maximum performance.

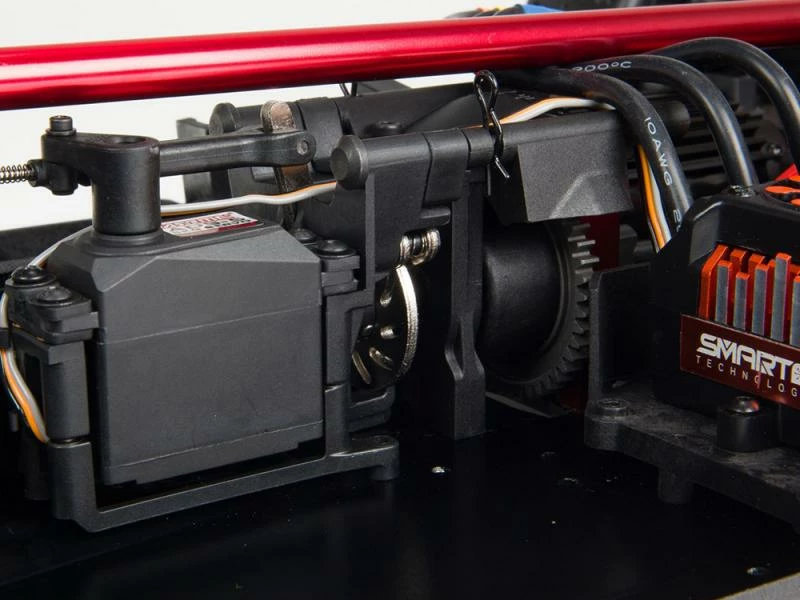

Another feature new to the INFRACTION™ 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum® SPMS650 brake servo. You control the handbrake from a convenient switch on the DX3™ transmitter for thrilling drifting, “hooning” and stunt action.

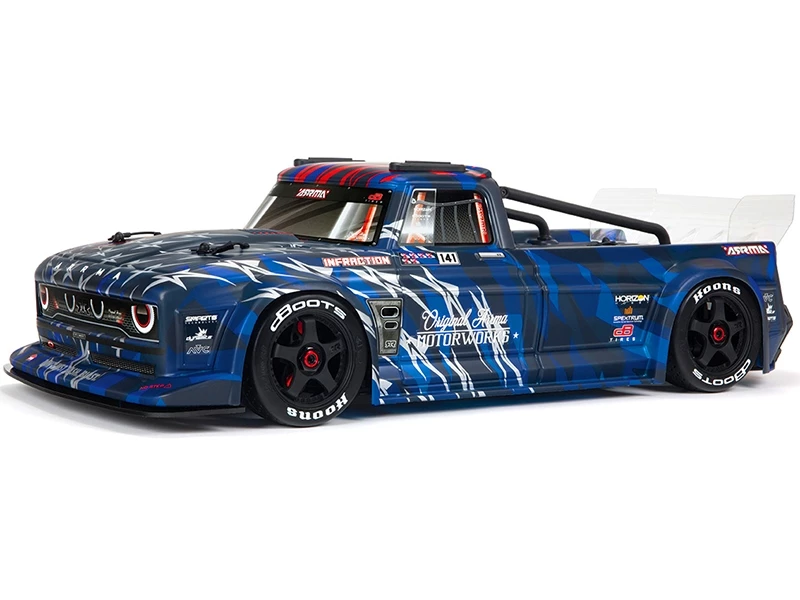

With its 4X4 traction, you can run the INFRACTION™ 6S BLX 4WD on all roads, in all conditions — over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice — while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customize the downforce just the way you want it.

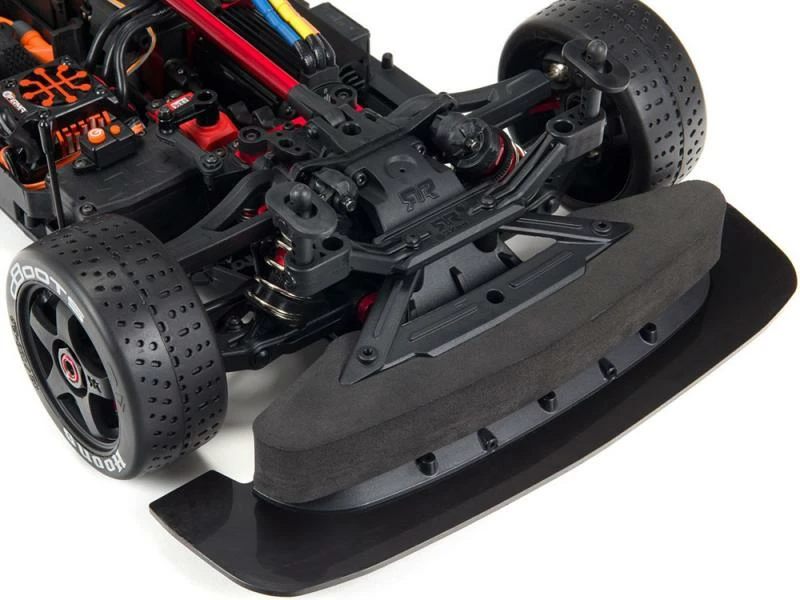

To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots® Hoons™ all-road tyres keep their grip on the surface to pour on speed or stop on a dime.

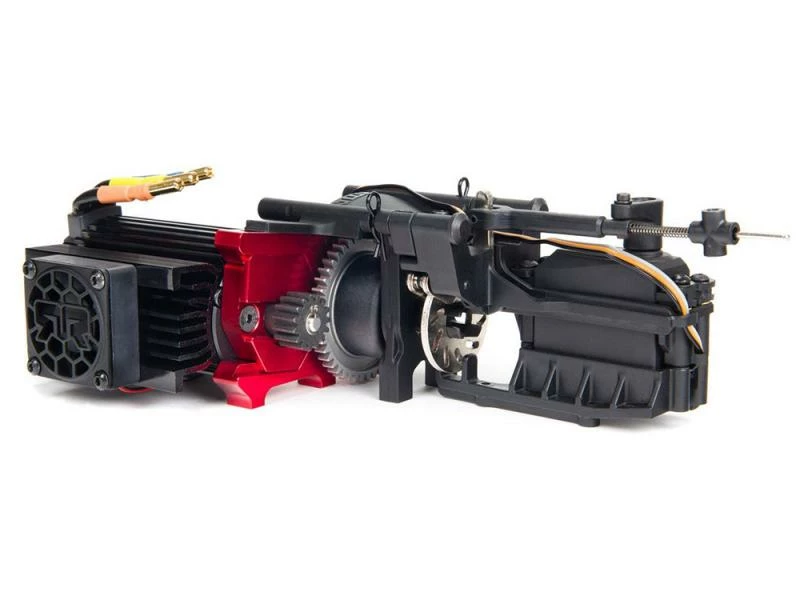

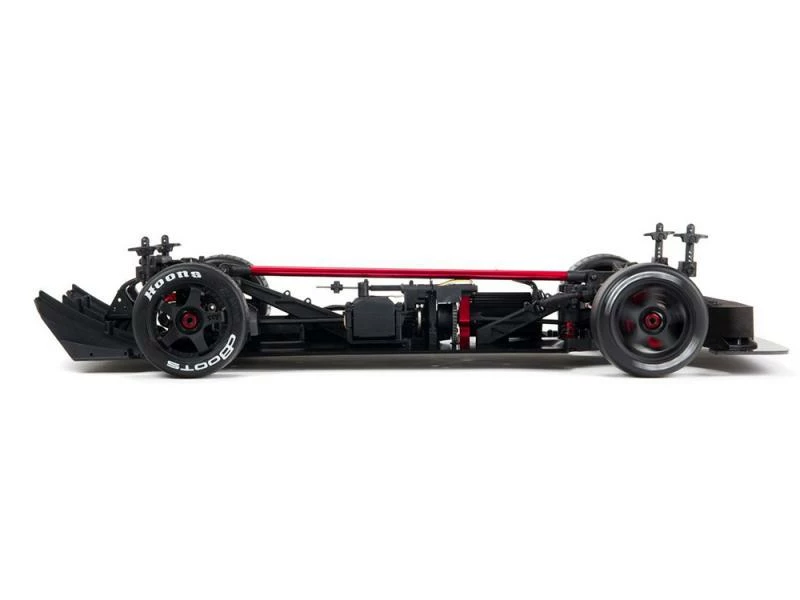

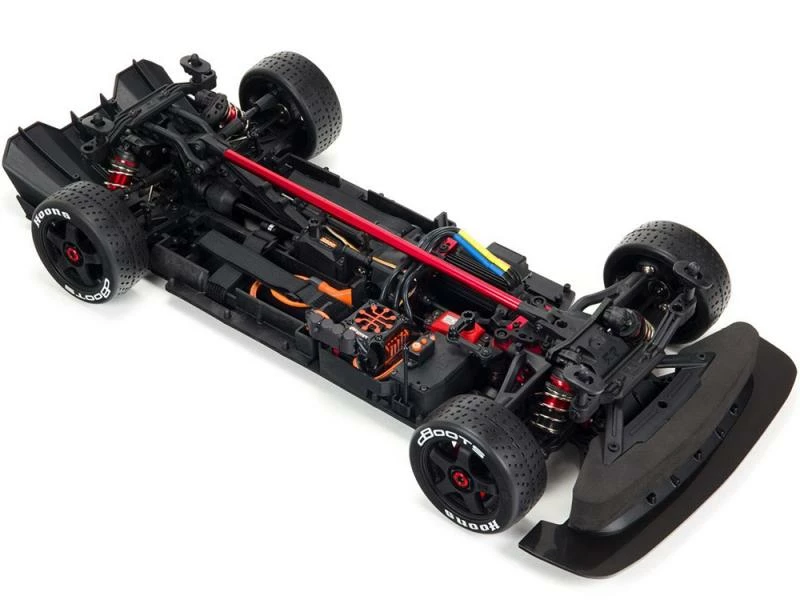

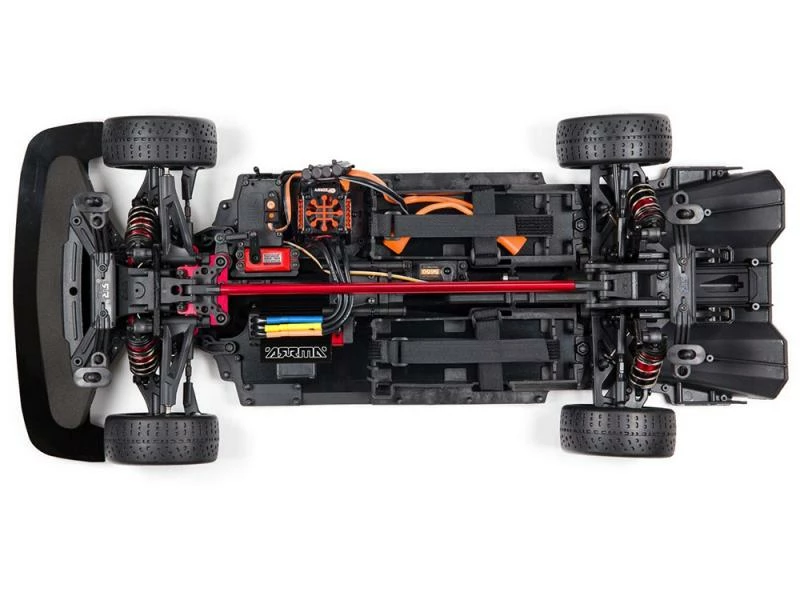

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodised aluminium chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the center line transmission RPM, reducing the center drive shaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a center brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodised aluminium shocks are mounted on strong, black-anodised aluminium shock towers.

ARRMA® has equipped the ready-to-run INFRACTION™ 6S BLX 4WD with the 3-channel Spektrum® DX3™ radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control™) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle’s brushless power system also features Spektrum® Firma™ Smart components, so it’s easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard™ app for iOS or Android, available for free at the App Store or Google Play.

Product Details

Take high-speed street bashing performance to another level with the 1/7 scale ARRMA® INFRACTION™ 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum® Smart electronics.

Key Features

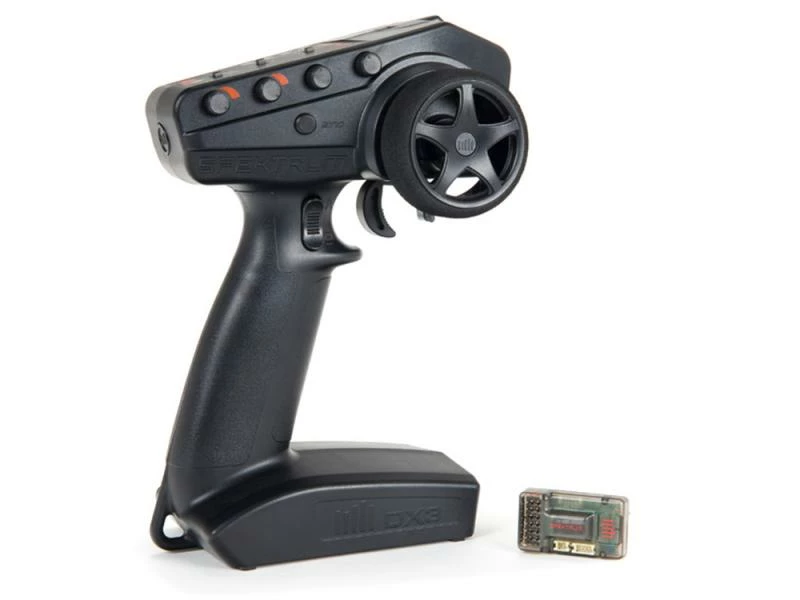

Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
Compatible with Spektrum® Dashboard™ app for iOS or Android

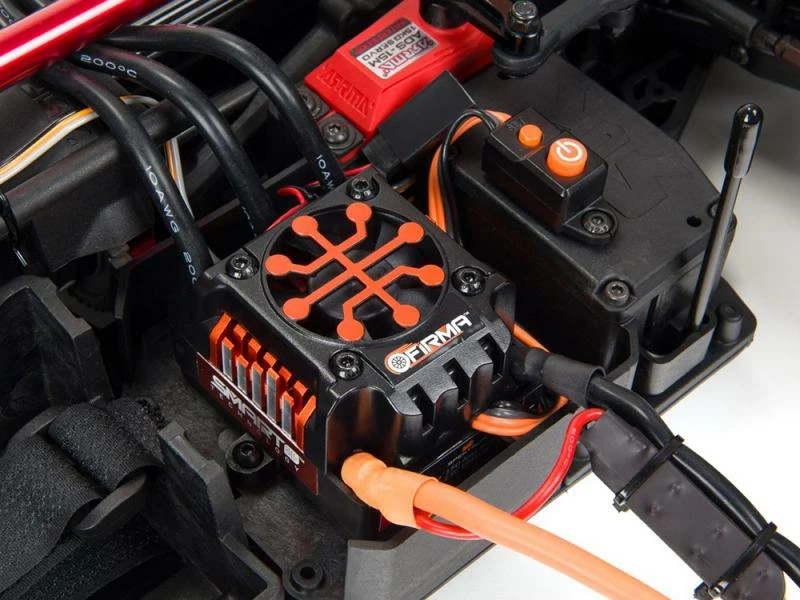

Spektrum® Firma™ 150A Smart ESC
dBoots® Hoons™ all-road tyres
RTR Completion Level includes everything needed besides batteries and a compatible charger

In The Box

    (1) 1/7 ARRMA® INFRACTION™ Resto Mod Street Bash 6S BLX 4WD RTR
    (1) Spektrum® Firma™ 150A Smart ESC (installed)
    (1) Spektrum® Firma™ 4074 2050Kv Brushless Motor (installed)
    (1) ARRMA® ADS-15M Waterproof* Servo (installed)
    (1) Spektrum® SPMS650 Waterproof* Brake Servo (installed)
    (1) Spektrum® SR6110AT AVC Receiver (installed)
    (1) Spektrum® DX3™ DSMR® Radio
    (1) Product Manual

Needed to Complete

• (2) 2S or 3S LiPo batteries
• Compatible charger
• Safe LiPo charging bag
• (4) AA transmitter batteries

Specification:

• Scale: 1/7
• Motor type: 4074 Non-sensored Brushless
• Weight: 5Kg
• Height: 200mm
• Length:6 95mm
• Width: 310mm
• BATTERY RECOMMENDATIONS: 2x2S or 2x3S Lipo (Hard or soft-case) within dimensions 180 x 55 x 70mm

Features:

• Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
• Compatible with Spektrum® Dashboard™ app for iOS or Android
• ARRMA® ADS-15M Waterproof* Steering Servo
• Spektrum® SPMS650 Waterproof* Brake Servo
• Spektrum® Firma™ 150A Smart ESC

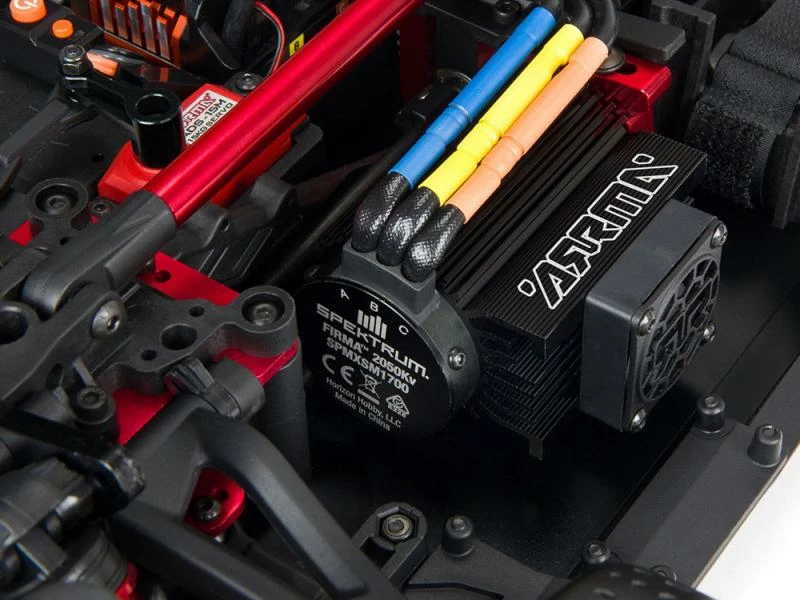

• Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D pinion gears
• New electronics module
• New mechanical handbrake feature
• Fresh street body look with matte gloss effect designs
• Tunable wing for customizing the downforce
• Full-width front splitter balances downforce distribution
• Rear diffuser increases downforce and grip for cornering faster and with confidence
• Adjustable front and rear body mounts
• 3mm Plate, 6061-T6 anodised aluminium chassis
• Center brace for maximum durability
• Heavy-duty drivetrain with durable steel driveshafts throughout
• High-speed center driveshaft support
• Rubber-shielded bearings
• All-metal diff outdrives and gearbox internals
• Updated internal gears with new tooth profile for increased strength
• Lower internal gear ratio to reduce the center line transmission RPM, reducing center drive shaft resonance and increasing drivetrain durability
• Oil-filled, adjustable, anodised aluminium shocks
• Black-anodised aluminium front and rear shock towers
• Waterproof* receiver box
• Large battery trays
• 5-spoke wheels
• Durable wheel hubs
• dBoots® Hoons™ all-road tyres

Full Specs

• Approximate Assembly Time Less than an hour
• Ball Bearings Full set
• Battery Sold Separately
• Battery Tray Dimensions 5.45 x 1.83 x 1.38 in (138.5 x 46.5 x 35mm)
• Body INFRACTION, Screen printed, Decaled, Trimmed
• Brakes Metal disc with metal pads
• Bushing Material Metal
• Charger Sold Separately
• Chassis 0.12 in (3mm) Plate, 6061-T6 Aluminum
• Completion Level Ready-To-Run
• Differential Three oil-filled metal gear
• Drivetrain 4WD
• Drive Type Forward/Brake/Reverse
• Final Drive Ratio 8.58:1
• Front Track 12.13 in (308mm)
• Power Type Electric
• Gear Pitch 1.0MOD
• Ground Clearance 0.59 in (15mm)
• Internal Gear Ratio 2.8:1
• Max Battery Dimensions 5.5 x 1.85 x 1.5″ (140 x 47 x 38mm)
• Motor Type Brushless – Sensorless
• Pinion 15T
• Product Height 7.87″ (200 mm)
• Product Length 27.36″ (695 mm)
• Product Weight 11lbs (4990g)
• Product Width 12.2″ (310 mm)
• Radio Included
• Rear Track 12.01 in (305mm)
• Receiver Included
• Scale 1/7
• Search Keywords infraction-felony
• Servos Included
• Shock Type 3.03 in (77mm) FR, 3.43 in (87mm) RR. aluminum body, oil-filled
• Speed Control Included
• Spur Gear 46T
• Suspension Independent
• Vehicle Type On-Road
• Wheelbase 15.98 in (406mm)

* For details on waterproof standards, please refer to the product instruction manuals

Specification

Manufacturer	Arrma
Part Number	C-ARA7615V2T1
EAN	5052127037303
Motor Type	Brushless
Waterproofing	Waterproof
Drive	4WD
Surface Type	On-Road
Assembly Type	Assembled (RTR)
Scale	1:7
Vehicle	On-Road
Skill Level	Skill Level 5
Power Bundles	Power Bundle Required
