Arrma Typhon 6S V5 BLX

Designed fast and designed tough, the ARRMA® TYPHON™ 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills — with a Spektrum™ SLT3™ radio, dual protocol receiver, Smart ESC, stronger servo and more.

Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA^® TYPHON^™ 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum^™ 3-channel radio system and Firma^™ brushless electronics, it’s all set for fast action on all terrain, in all conditions.

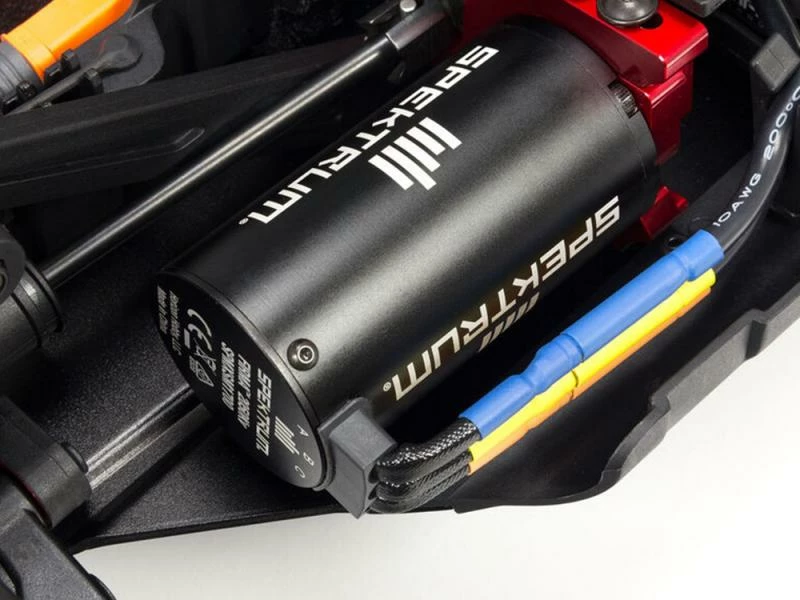

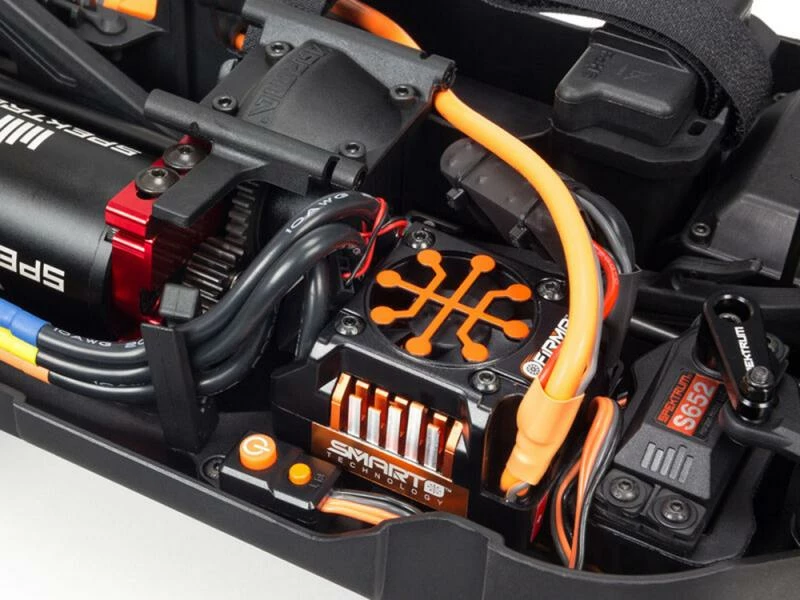

ARRMA^® engineers have updated the TYPHON^™ 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum^™ Firma^™ 150A Smart ESC and Firma^™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA^® also includes a new, steel gear Spektrum^™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version’s ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum^™ SLT3^™ radio and Spektrum^™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3^™ is compatible with Tactic^® SLT^™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT^™ and DSMR^® protocols, you can easily upgrade to a Spektrum^™ DSMR^® transmitter later — then, download the free Spektrum^™ Dashboard^™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma^™ electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

The TYPHON^™ 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

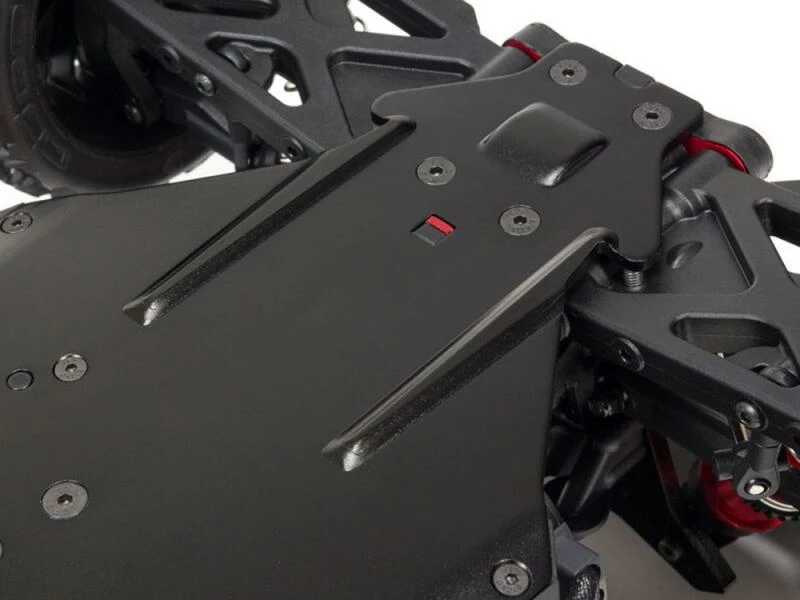

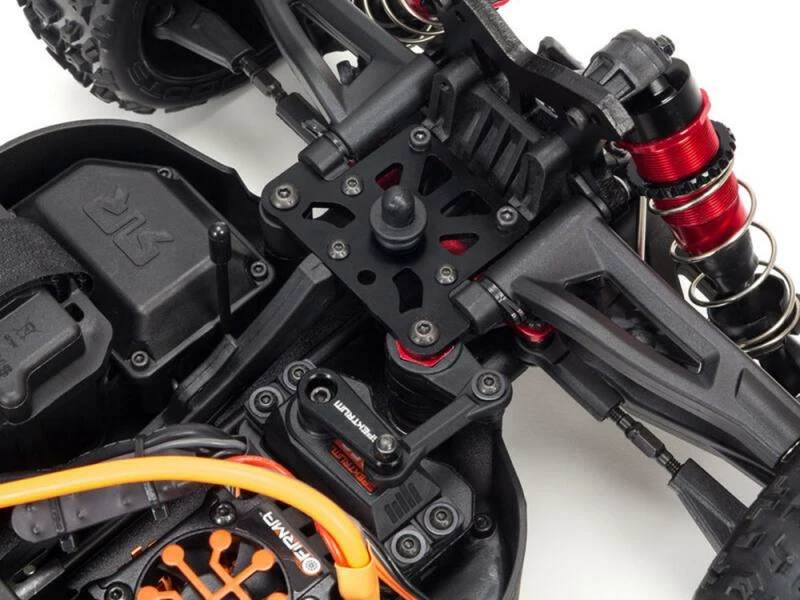

For the durability needed to support intense brushless performance, ARRMA^® uses a strengthened, anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A “never loose” aluminum steering servo saver and “never pop” ball ends supply more precision, reliability and confidence.

ARRMA^® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots^® KATAR^™ tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.

Features

• Ready-to-run
• Spektrum^™ SLT3^™ 2.4GHz 3-Channel Radio
• Spektrum^™ SR315 Dual Protocol 3-Channel Receiver
• Spektrum^™ S652 Digital Servo
• Spektrum^™ Firma^™ 150A Smart ESC
• Spektrum^™ Firma^™ 4074 2050Kv Brushless Motor
• EXB compatible front brace
• Stronger chassis design
• Large volume waterproof* receiver box
• +1mm wheel hexes
• Anodized aluminum chassis
• Strong composite chassis side pods
• Strong front and rear composite chassis brace
• High-speed low downforce wing and strong mounts
• Oil-filled adjustable shocks
• Aluminum shock caps and protectors
• Black-anodized aluminum front and rear shock towers
• Durable steel driveshafts throughout
• Heavy-duty drivetrain
• All-metal diff outdrives and gearbox internals
• Never-loose red aluminum servo saver
• Never-pop ball ends
• 4-Bolt center diff removal
• Easy-access sliding motor mount for quick motor removal
• Super-durable wheel hubs for increased strength
• Low drag wheels
• Multi-terrain dBoots^® KATAR^™ tires
• Forged composite style matte paint scheme
• IC5^® connectors (EC5^™ compatible)
• 2-year limited warranty (see manual for details)

In the Box

• ARRMA® TYPHON™ 6S BLX 1/8 Speed Buggy 4WD RTR
• Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
• Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
• Spektrum ™ S652 Metal-Geared Digital Servo (installed)
• Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
• Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
• Product Manual

Needed to Complete

• 4S or 6S LiPo Battery
• LiPo Compatible Charger
• LiPo Charging Bag
• (4) AA Batteries

Full Specs

• Approximate Assembly Time No assembly required
• Ball Bearings Full set
• Battery Sold Separately
• Body Painted, decaled and trimmed
• Brakes User programmable
• Charger Sold Separately
• Chassis 0.12″ (3mm) 6061-T6 aluminum
• Completion Level Ready-To-Run
• Differential Three, gear type
• Drivetrain 4WD
• Drive Type Forward/Brake/Reverse
• Final Drive Ratio 10.31
• Front Shock Spring Rate 75.5gf/mm
• Front Track 12.2″ (310mm)
• Power Type Electric
• Gear Pitch 1.0MOD
• Internal Gear Ratio 3.3
• Motor Size 4074
• Motor Type Brushless – Sensorless
• Pinion 16T
• Product Height 7.48″ (190 mm)
• Product Length 20.08″ (510 mm)
• Product Weight 7.52lbs (3.42kg)
• Product Width 12.22″ (310 mm)
• Radio Included
• Rear Shock Spring Rate 56.6gf/mm
• Rear Track 12.2″ (310mm)
• Scale 1/8
• Servos Included
• Shock Type Aluminum body oil-filled adjustable
• Speed Control Included
• Spur Gear 50T
• Suspension Independent
• Tire Tread dBoots KATAR B
• Tire Type Multi-surface
• Vehicle Type Buggy
• Water-Resistant Yes
• Wheelbase 12.91″ (328mm)
• Wheel Hex Size 17mm
• Wheel Type 1/8 scale Buggy
• Wheel Width 1.7″ (44mm)

Battery recommendations: 4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 51mm or 6.22 x 1.89 x 2.00 inches

Specification

Manufacturer	Arrma
Part Number	C-ARA8606V5
EAN	5052127038836
Motor Type	Brushless
Waterproofing	Waterproof
Drive	4WD
Surface Type	Off-Road
Assembly Type	Assembled (RTR)
Scale	1:8
Vehicle	Buggy
Skill Level	Skill Level 4
Power Bundles	Power Bundle Required
